SONNET

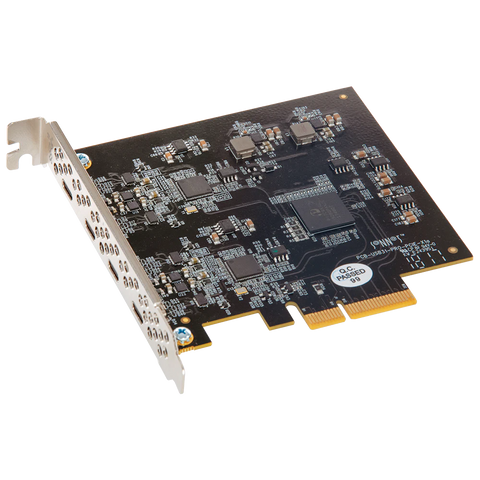

SONNET Allegro USB-C 3.2 PCIe kort, 4 portar
USB-C kort till din Mac Pro med 4(!) stycken utgångar. Uppgradera din Mac Pro 4,1 eller 5,1 med USB-C portar så blir den i klass med moderna maskiner. Vi kan hjälpa dig med all Mac Pro uppgradering. Kontakta oss eller kolla HÄR för mer.
Höjdpunkter
- Lägg till 4 st 10Gbps USB-C portar till din Mac Pro, Windows PC eller Linux dator som har PCI-e portar.
- Dubbla USB 3.2 Gen 2 Controllers: Dubbelt så snabb dataöverföring jämfört med USB 3.0 och USB 3.1 Gen 1.
- Stöder strömförsörjning genom USB porten. Ger 7.5W ström till exempelvis din SSD eller externa hårddisk.
- Enkel installation: Installera kortet i valfri PCI-e plats och börja använda kortet direkt. Kortet kräver ej drivrutiner (i Mac).
Mac kompabilitet:
• Mac Pro® 3,1, 4,1, 5,1 och 7,1 (2019)
• macOS 10.10.5, 10.12.6+ (EJ KOMPATIBEL MED MACOS 10.11)
• macOS Mojave kompatibel
Överföringshastigheter med antal enheter:
800MB/s med en enhet
660MB/s med två enheter
300MB/s med fyra enheter
x the Performance of USB 3.0 and USB 3.1 Gen1 Connections
Equipped with SSDs, the fastest 3.2 Gen 2 USB drives you can buy today are capable of
800 MB/s data transfers—many are bus-powered, too. But, most desktop computers
(even new models) include generations-old USB interfaces that will throttle that performance
and may not offer adequate power to allow bus-powered drives to operate. Break through the
bottleneck—install Sonnet’s Allegro™ USB-C 4-Port PCIe card in your Mac Pro® tower, Windows® PC,
or Linux(1) computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support
your fast USB drives at maximum performance.
Two Controllers, Four Ports
Featuring two 10Gbps USB 3.2 Gen 2 controllers and four USB-C ports, the Allegro USB-C 4-Port
PCIe card supports data transfers at up to twice as fast as USB 3.0 and USB 3.1 Gen 1 ports are capable.
With two controllers onboard, the Allegro card speeds data transfers between connected drives,
and enables your computer to load and off-load data more quickly.
Speed and Power
Unlike other 4-port USB cards (simple hubs that split a single USB controller’s bandwidth between
all four ports), Sonnet’s Allegro USB-C 4-Port PCIe computer card supports data transfers from a
single USB 3.2 Gen 2 SSD RAID device at up to 800 MB/s— compared to using a USB 3.1 Gen 1 or
USB 3.0 adapter card, transfers complete in half the time! Exploiting its dual controllers design,
it’s possible to simultaneously transfer data to two connected drives at up to 660 MB/s each. With
four drives connected, the four ports support simultaneous 300 MB/s transfers!
The Allegro card provides 7.5W of power through each of its ports, supporting USB bus-powered hard
drives, and SSDs without the need to connect an additional AC power adapter.
Key Features
• Four SuperSpeed USB-C 10Gbps Ports—Adds four USB-C 10Gbps ports to your Mac Pro, Windows PC, or Linux computer with PCIe slots; or Thunderbolt to PCIe card expansion system
• Powerful Performance with Dual USB 3.2 Gen 2 Controllers—Support data transfers at up to twice as fast as USB 3.0 and USB 3.1 Gen 1; speed data transfers between connected drives
• Powered Ports—Supports USB-C bus-powered SSD, SSD RAID, and hard drive devices with up to 7.5W power per port
• Protected Power Delivery—Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer, and may be reset by a simple shutdown
• Broad USB Device Support & Compatibility—Supports storage, hubs, and other USB-IF compliant USB devices
• Add USB 3.2 Gen 2 to Thunderbolt Expansion Systems—Add four SuperSpeed USB-C 10Gbps ports to Thunderbolt to PCIe card expansion systems
• Supports Hot-Swappable Device Connection—Plug in and disconnect peripherals without shutting off your computer
• Easy Installation—Quick and easy installation into any available PCIe slot
Mac Compatibility
• Mac Pro® 3,1, 4,1, 5,1 and 7,1 (2019)
• macOS 10.10.5, 10.12.6+(2) (not compatible with macOS 10.11)
• macOS Catalina compatible
Windows Compatibility
• computer with PCIe slots
• Windows 10, 8.1, 7
• Windows Server 2016, 2012, and 2008 (64-bit editions)
